Description
Description
x

How to use, please read carefully! ! !

NOTE

  • This product only supports digital TV, and determine whether the DTMB digital TV signal is activated in the local area！！！！！！

  • Only brand-name digital TVs purchased after 2016 that are 32 inches or above support the use of a single antenna.

  • TVs before 2016 will also work.

  • All Japanese and Korean brand TVs/Xiaomi/Huawei/LeTV need to be used with a set-top box! ! !

  • This product does not require an Internet connection! ! ! Free TV! ! !


Description:

With its horizontal shape design, this TV antenna can receive signals in 360 degrees so you can have a good viewing experience. And, it is designed with a removable magnetic base for easy use.

This TV antenna has the advantages of high gain, high sensitivity and wide coverage, which can spread stably. Also, it is very lightweight and does not take up too much space, so it can be used in multiple scenes.

It is constructed of ABS material.

The length of this product is 10cm.

This product is suitable for DTMB, ISDB, DVB-T, DMB-T and other digital TV signals.

Electrical Specifications

Model No.

G15301B

Frequency Range

170-862MHz

Gain

25dBi

VSWR

≤2.0

Input Impedance

75Ω

Polarization

Vertical

Horizontal Half Power Angle

360°

Max Input Power

50W

Lightning Protection

DC Ground

Mechanical Specifications

Working Temperature

-40℃~65℃

Connector Type

SMA/F/IEC

Cable Type

SYV-75-3

Cable Length

3M/5M/10M

Antenna Weight

220g

Size

Φ129*62*129mm

Mounting

Magnetic Base

Color

Black

Package Size

/

Weight

210g

Notes:

Due to the light and screen setting difference, the item's color may be slightly different from the pictures.

Please allow slight dimension difference due to different manual measurement.

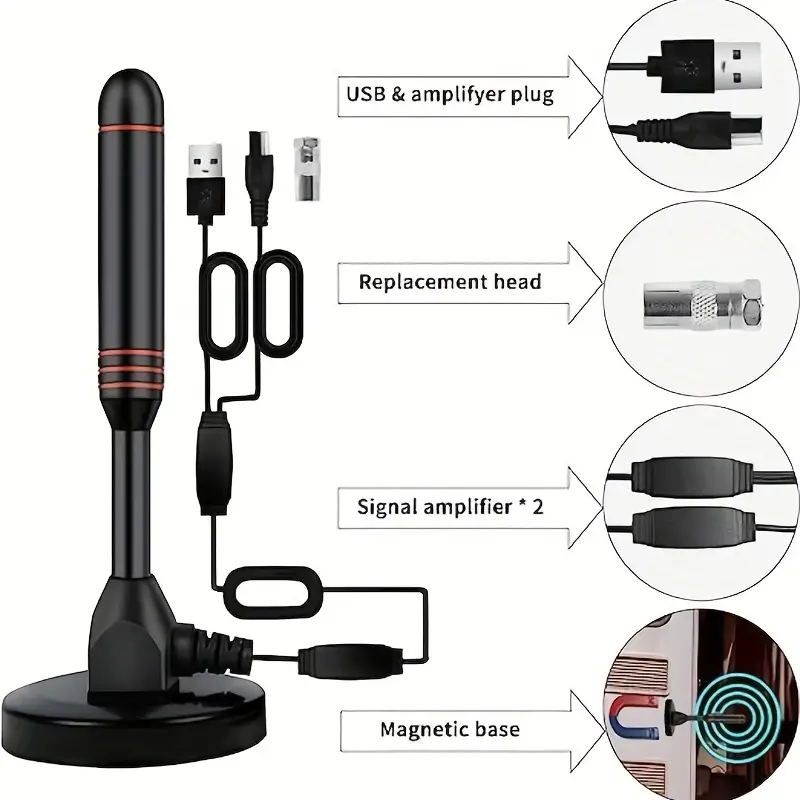

Package Includes:

1*TV Antenna

1*Coaxial Cable

1*Universal Connector

1*User Manual
